EX12
Carrier Class Transport NID

●  Demarcation and Media conversion
●  SFP GbE Interfaces (Optical and Electrical)
●  Digital Diagnostics monitoring (DDM)
●  CFM OAM IEEE 802.1ag for link fault management
●  Integrated Web GUI
●  Telecom power -48/-60 VDC nominal
●  Robust front access
●  Fanless design

The EX12 is the ideal Carrier-class solution for Demarcation and Media Conversion at the edge of the network. It uses small form pluggable (SFP) to support a wide range of electrical and optical interfaces. Digital Diagnostics Monitoring (DDM) is fully supported to enable both on site and remote checking of optical power levels. It has a robust metal housing with a solid Telecom grade power connector. The Transport NID supports CFM OAM IEEE 802.1ag connectivity fault management to be able to meet Service Level Agreements (SLA). The EX12 can be fully provisioned using the built in Web GUI. The small size and low power consumption enables the use of the EX12 in locations where there are restrictions on space and dissipation. An API is available to seamlessly integrate EX12 support in your own Network Element.

The EX12 has the following key features:

• IEEE 802.1aj TPMR operation
• Link Pass Through (LPT)
• Dying Gasp
• Status LEDs for link, management, fail and power
• Layer 2 Control Protocol (L2CP) processing with enhanced frame matching
• Flexible mounting options
• Wire speed GbE throughput

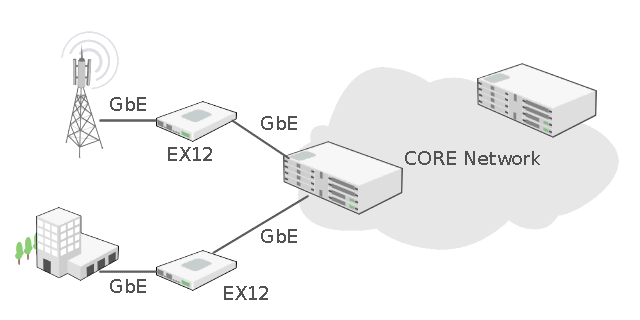

The EX12 will support Mobile Backhaul demarcation up to 80 km with comprehensive Connection Fault Management according IEEE 802.1ag. Business Ethernet Services can be monitored up to the customer premises with media conversion to both electrical and optical interfaces.

Specifications
